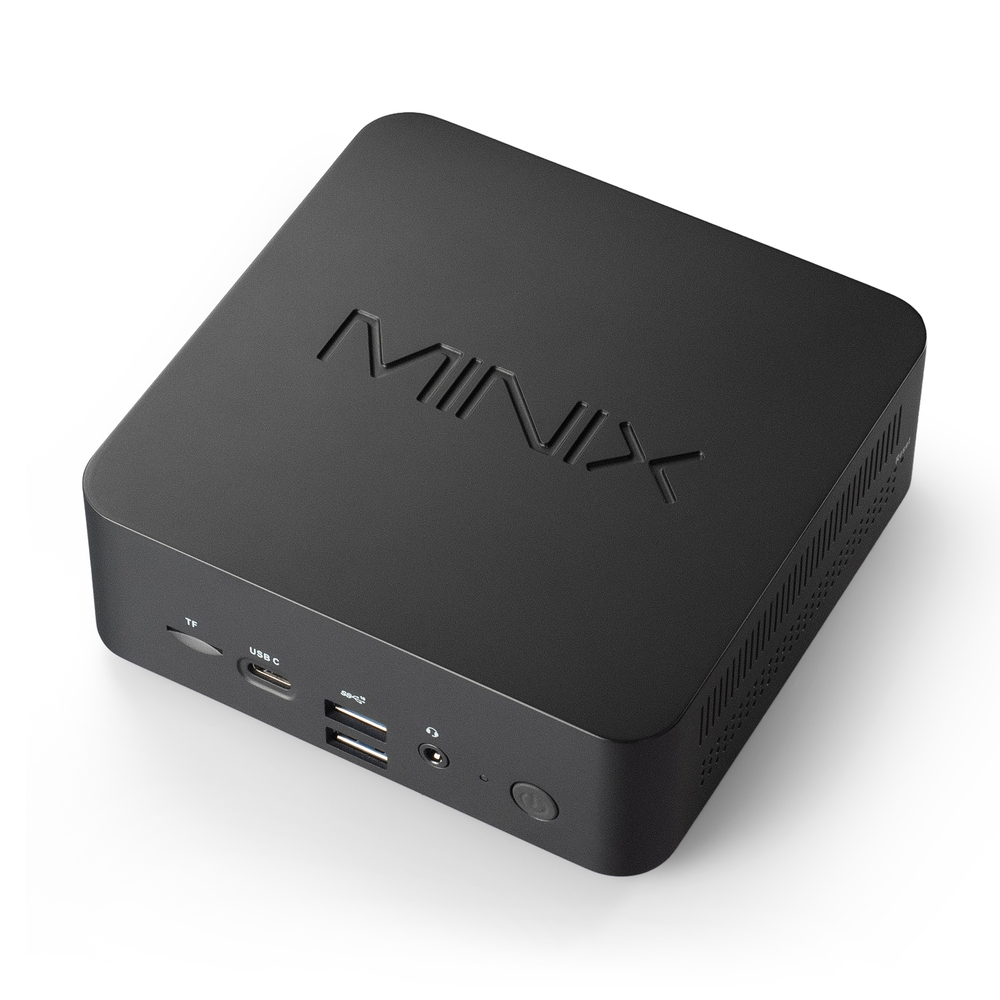

MINIX NEO Z100 Windows 11 Pro mini PC

Product description

• Brand:MINIX
• EAN:4897016411304
• Article number:MINIX Z100-0dB (8+256GB)
• Availability: In stock (20)

MINIX NEO Z100 FANLESS MINI PC Windows 11

Processor

Intel Alder lake-N N100 Processor.TDP 10W

Graphics

Intel UHD Graphics

Display

1*HDMI 2.0b, Max Resolution 4096X2304@60Hz

Memory

1*DDR4 SO-DIMM,4GB by default,Max.16GB DDR4 3200MHz

Ethernet

1*Realtek RTL8111K Gigabit.Support WOL,PXE Boot

Audio

1*Realtek ALC897

Storage

1*eMMC 5.1 on board,by default 128GB

1*M.2 KEY M,Supports M.2 2280 SATA and NVMe SSD（Option）

Expansion

1*M.2 Key E,Supports M.2 2230 WiFi+BT Module,Supports CNVi

Front Panel I/O

1*PWR_BTN

1*LED(PWR_LED)

1*USB 3.2 GEN2 X1 Type C(Only data) ,10Gbps

2*USB 3.2 GEN2 X1 Type A(10Gbps)

1*3.5mm_OUT/MIC_IN 2 in 1,Appole Mode only

1*TF card slot

Internal I/O

1*DC IN port

2*HDMI port

1*RJ45 port

2*USB 2.0 Type A

Internal I/O

1*CLR_CMOS

1*F_PANEL by pin header

1*AUTO_ON by pin header(ATX/AT model)

1*CPU_FAN by pin header

1*COM pin header(F81438G,RS232/RS422/RS485)

BIOS

128MB Flash ROM

Power

DC IN 12V-19V

OS

Windows11 Pro,Linux

Heat Sink

Fanless

Operating Temperature

0℃～50℃

Storage Temperature

-20℃～70℃

Humidity

5%-95% Relative Humidity,Non-condensing

Dimension

120*120mm,8L PCB

Other

Support Watchdog,TPM 2.0 SLB9670 onboard
